Model No.: THA800
Brand: Hanfong
Network: Sdk
Customized Support: Software Reengineering
Brand Name: Hanfong
Model Number: THA800
Type: Dc/Ac Inverters
Output Type: Single
Certificate: Ce
Product Name: inverter circuit diagram 800w
Output Wave Form: Modified Sine Wave
Working Power: 800w
Color: Black
Cooling: By Smart Fan
Service: OEM, ODM, Custom Made
Application: car, fan, light,mobile phone,solar system...
Protection: over-load,over-heat,low/over-voltage,short circuit...
Shell Material: Aluminium Alloy
Types Of: Dc/Ac Inverters
Place Of Origin: Guangdong, China
Output Current: 3.64A/upon the load
Output Frequency: 50-60Hz
Size: 265*130*65 mm
Weight: 1780g
Certification: CE and RoHs
Place Of Origin: China
Packaging: Standard packing for inverter circuit diagram 800w: Box size:350*175*110mm NW:1780g GW:2270g Packing size:560*335*345mm 1 pcs/box, 10 pcs/carton
Transportation: Express
Place of Origin: Guangdong,China
Supply Ability: 100000 Piece/Pieces per Month inverter circuit diagram 800w
Certificate: CE,Rohs
Port: Guangzhou
Payment Type: Western Union,D/P,T/T,Paypal,MoneyGram
Incoterm: EXW

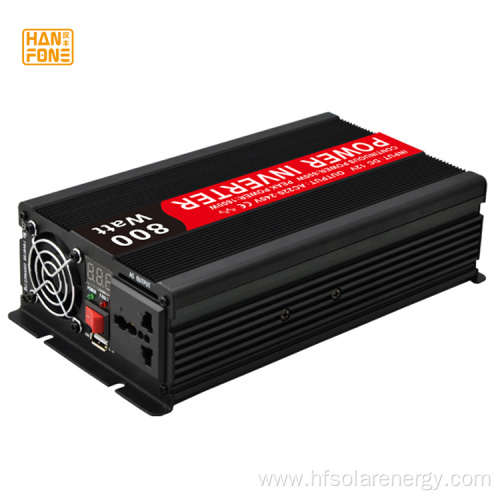

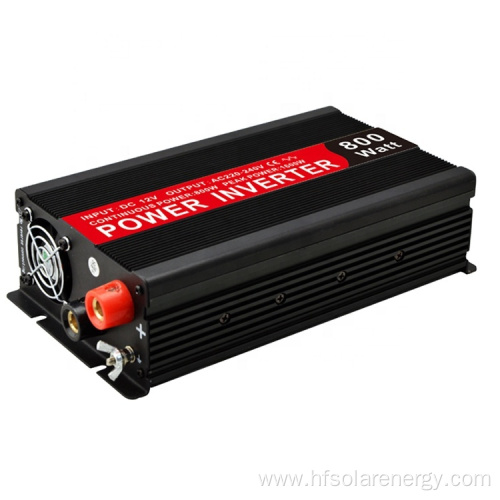

High Quality Car Power Inverter 800W Assurance Ce Rohs DC 12V To 220V AC Car Inverter For home Inverter 12v
Production introduction:

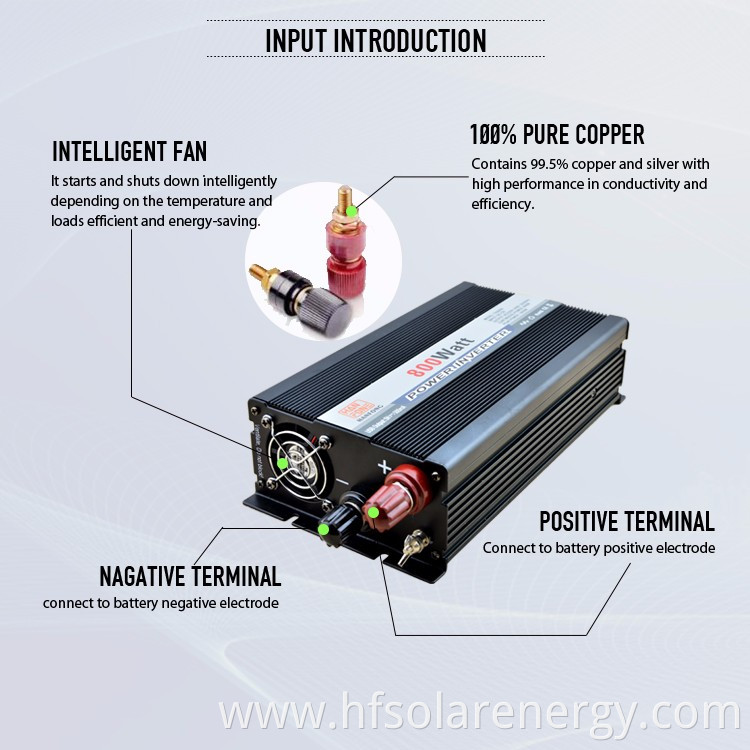

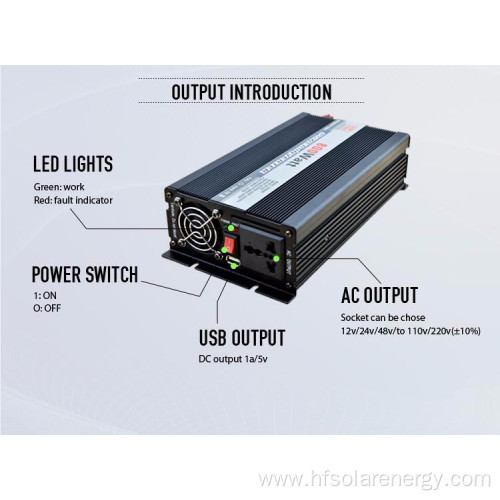

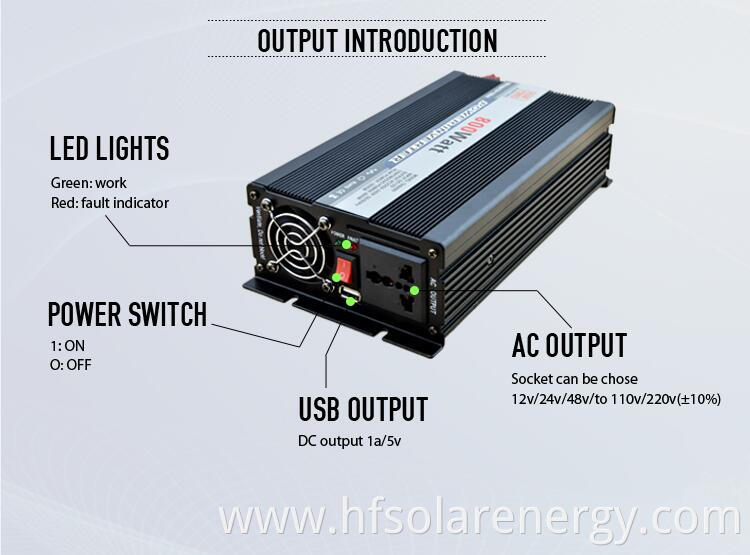

The 800W Inverter converts DC 12V to AC 220V. It have four protection, low-voltage, over voltage, over load, over-heat. This can against battery under voltage, overload, short-circuit. It also have microprocessor control guarantees high reliability.It has two terminal,cooling fan,socket,on/off switch,LED indicator, USB port.
Features:
●Advanced automatic constant circuit for extended battery life.
●With 100% full power, efficiency reaching up to 85%.
●Isolated output, Soft start, can work with inductive load.
●USB charging port +5VDC, 2100mA.
●Isolated circuit, strong impact resistance, constant voltage and stable output, low-interference.
●Special circuit design and rugged components protect the Power Supply inverter from being damaged easily, even when the starting power of the device is more than 3 times that of the inverter.
●Excellent components with improved safety grounding devices and reduced interference; The built-in fan is intelligent and will not work until the power reaches 1/3 of the inverter.
| Input | Output | Package |
| Input voltage:DC 12V(24V/48V) | Continuous power:800W | Net weight:1780g |
| Input voltage range:DC 9.5V-15.5V | Peak power:1600W | Gross weight:2270g |
| Load controlled fan : Yes | Output voltage:AC 220V/110V | Product Size:265*130*65 mm |
| Fuse : 20A*4 | Output voltage Regulation : +/-10% | Packing size:350*175*110mm |
| Peak efficiency:>90% | USB Charging port:5VDC,500mA | Packaging : 10 pcs per carton |
| Working temperature : 0-40 deg C | Output Frequency:50Hz/60Hz | Packaging carton : 535*435*310mm |
| | Output wave form:Modified sine wave | |
Product Categories : Modify Sine Wave Inverter > Inverter 12v
